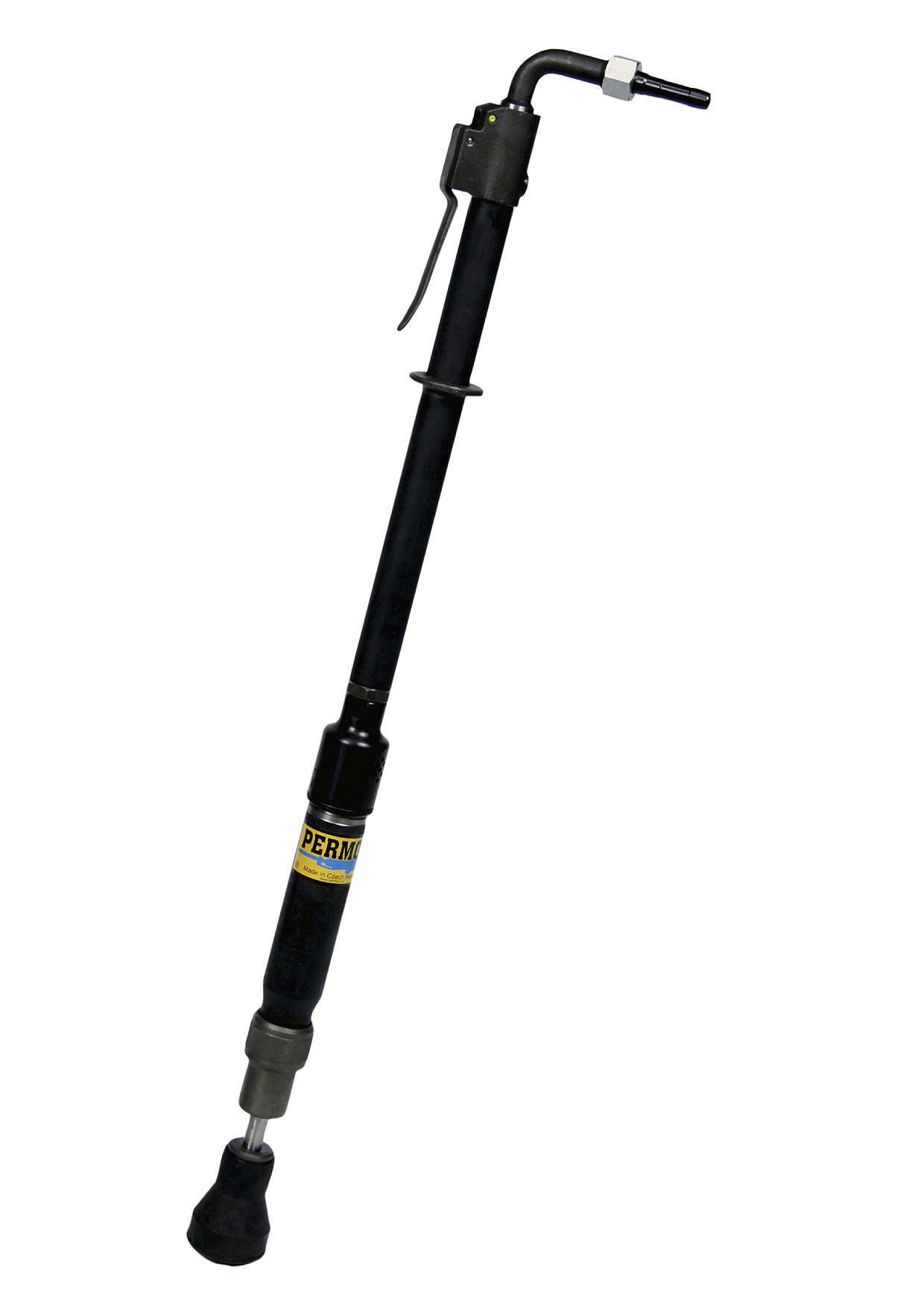

Pneumatic rammers PERMON are used for pressing the forming materials, particularly in foundry technology and in places for pressing non-solid materials. It includes foundry sand in the rollers, nuclear, extensive casting moulds for pressing works, e.g. pressing fireproof lining in high furnaces.
| Weight | Impact frequency | Air consumption | Oper. air pressure | Measured sound power level |
|---|---|---|---|---|
| 6,1 kg | 15 Hz | 0,3 m3min-1 | 0,4 -0,6 MPa | 106,1 dB |
| Guaranteed noise level LWA | Length | Piston stroke | Piston diameter | Dimensions of rammer |
|---|---|---|---|---|
| 108 dB | 940 mm | 150 mm | 25 mm | ø 60 mm |
| Air supply hose | Connecting thread | Ordering code |
|---|---|---|
| Js 13 | G 1/2" | 9440-170 |
