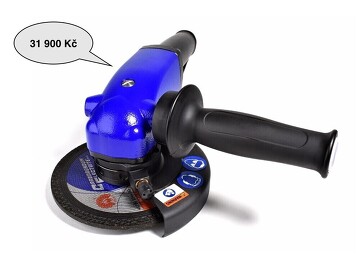

The grinder for Grinding/Cutting discs with diameter of 150 mm (6") is designed for heavy duty, industrial applications – even when used in 24/7 operations.
Our grinders of type GA...-190BX are equipped with new bevel gears for higher lifespan and extended service-interval. The valve-housing contains a filter with higher filtration-capability, which prevents the penetration of dust particles larger than 63 µm.
Integrated balancing unit reduces vibrations. The safety guard is adjusted just by a small lever (no special tool needed).
This makes the new grinders very flexible, especially when working on large cast-iron parts or welding seams, where a frequent adjustment of the safety guard is needed. The grinding wheel is easily replaced thanks to the spindle-lock mechanism.
| Max. thickness of cutting-off wheel | Max. power output | Speed (no load) | Weight | Rotation |
|---|---|---|---|---|
| 2 mm | 1900 W | 9850 min-1 | 3,1 kg | vpravo - right |
| Air consumption (no load) | I.D. of air inlet hose | Air connection | Operating pressure | Air consumption (loaded) |
|---|---|---|---|---|
| 1 m3/min | 16 mm | G 1/2'' vnitřní (female) | 6,3 bar | 2,2 m3/min |
| Max. radial speed | I.D. of grinding wheel | O.D. of grinding wheel | Max. thickness of grinding wheel | Max. cutting depth |
|---|---|---|---|---|
| 80 m/s | 22,23 mm | 150 mm | 6 mm | 43 mm |
| Spindle thread | Ordering code |
|---|---|
| M14 | 6061275B |
