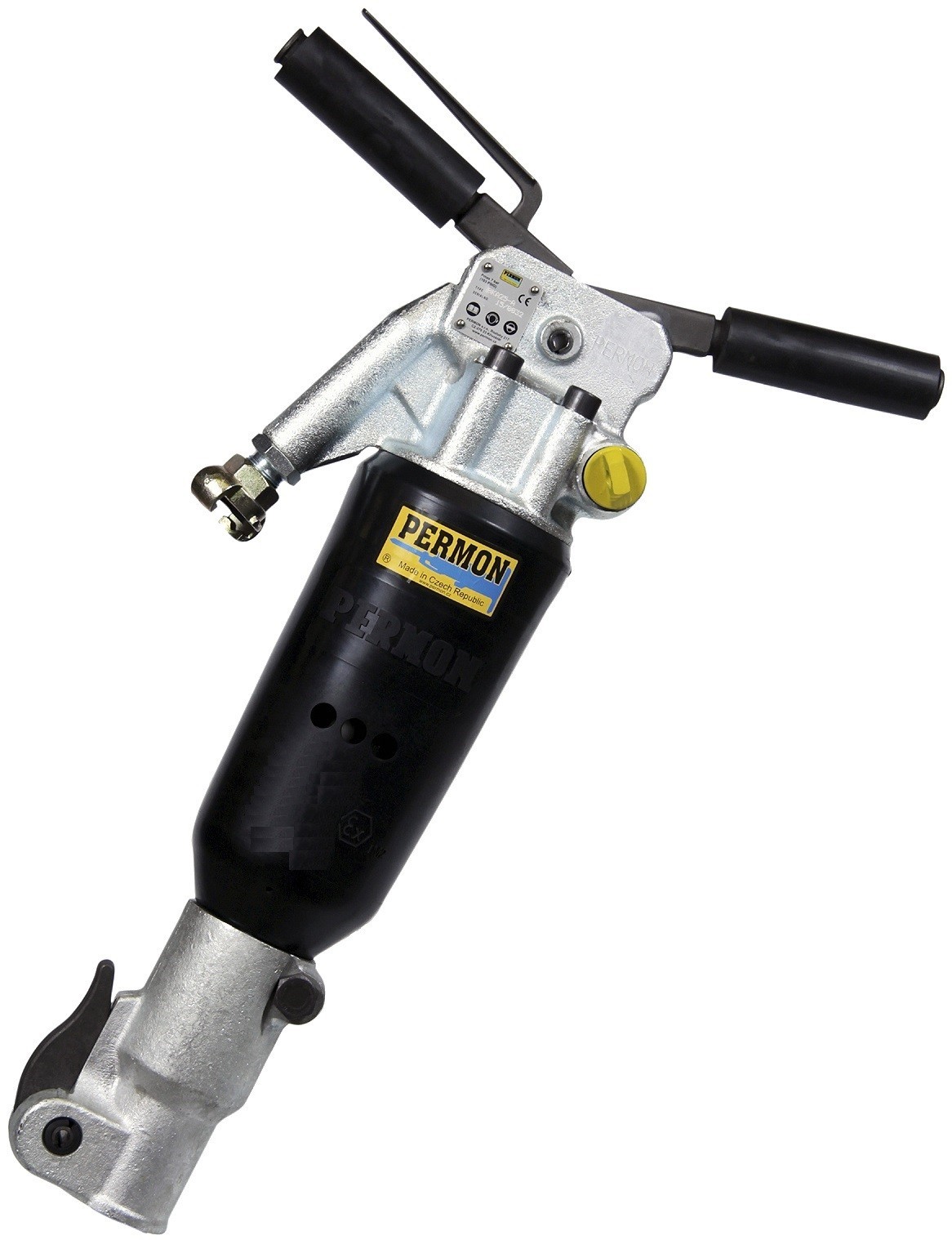

BKA 25-B (#28x160)

The breaking hammer is a versatile tool. It is designed for breaking up low to medium strength rock and material (concrete, bituminous roadways, masonry etc.). Its design and weight favors its use in downwards-horizontal or sloping direction.

Benefits of use

  • HIGH RATIO PERFORMANCE/WEIGHT ENABLE LOWER PHYSICAL WORK FOR THE OPERATORS
  • LONG LASTING RESISTANCE OF MATERIALS
  • SIMPLE CONSTRUCTION ENABLES EASY MAINTENANCE AND REPAIR WORKS
  • PISTON WITH AIR CUSHION
  • HIGH IMPACT ENERGY
  • HIGH SERVICE LIFE AND RELIABILITY
  • LARGE SELECTION OF TOOLS AND ACCESSORIES
  • VERY LOW VIBRATION LEVEL
  • MODERN ROBUST DESING
  • BUILD IN AUTOMATIC OILER

Specifications

Weight Impact energy Impact frequency Air consumption Oper. air pressure
25,4 kg 65 J 24 Hz 1,7 m3min-1 0,4 – 0,7 MPa
Effective value of weighted acceleration Measured sound power level Guaranteed noise level LWA Length x Width Air supply hose
5,2 m.s-2 101,1 dB 102 dB 694 x 441 mm Js 16
Connecting thread Tool shank size Ordering code
G 3/4" Quick Coupling #28x160 9460-201
