VK 23-5W (#25x108)

VK 23-5W (#25x108)

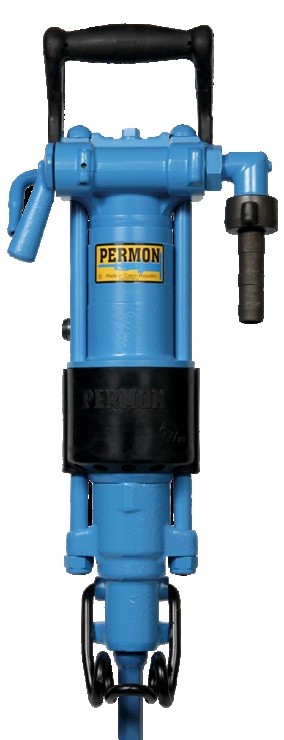

VK 23-5 pneumatic hammer is the first choice for multiple drilling applications. It is used to drill boreholes for blasting work in rocks of varying hardness, especially in mines, road and railway construction, construction, etc. A wire yoke is used to pull the drill rods out of the holes, which also provides the drill rod. Removal of the grit from the hole is ensured by a central duct wash.

Benefits of use

  • USED HAMMER CONSTRUCTION MATERIALS ALLOW WORKING IN EXPLOSIVE ENVIRONMENTS.
  • SIMPLE MAINTENANCE
  • VIBRATION DAMPED HANDLE ON DEMAND
  • https://youtu.be/VIdVGxpF0Ko
Poptat produkt
Request for product
Zobrazit příslušenství
Show accessories

Specifications

Vibration level (Hammer) Vibration level (Pusher legs) Weight Air consumption Impact energy
26.7 m.s-2 13.4 m.s-2 25,5 kg 4 m3min-1 45 J
Impact frequency Oper. air pressure Torque Number of hits / one turn of drill rod Length x Width
35 Hz 0,4 – 0,7 MPa 16 Nm 12 715 x 280 mm
Air supply hose Water supply hose Connecting thread Measured sound power level Guaranteed noise level LWA
Js25 mm Js13 mm G1“ 113.6 dB 115 dB(A)
Bore Diameter Direction of rotation of the drill stem Bore rod shank Ordering code
34 – 45 mm Vlevo - Left – Влево #25x108 (1x4 ¼”) 9403-551
