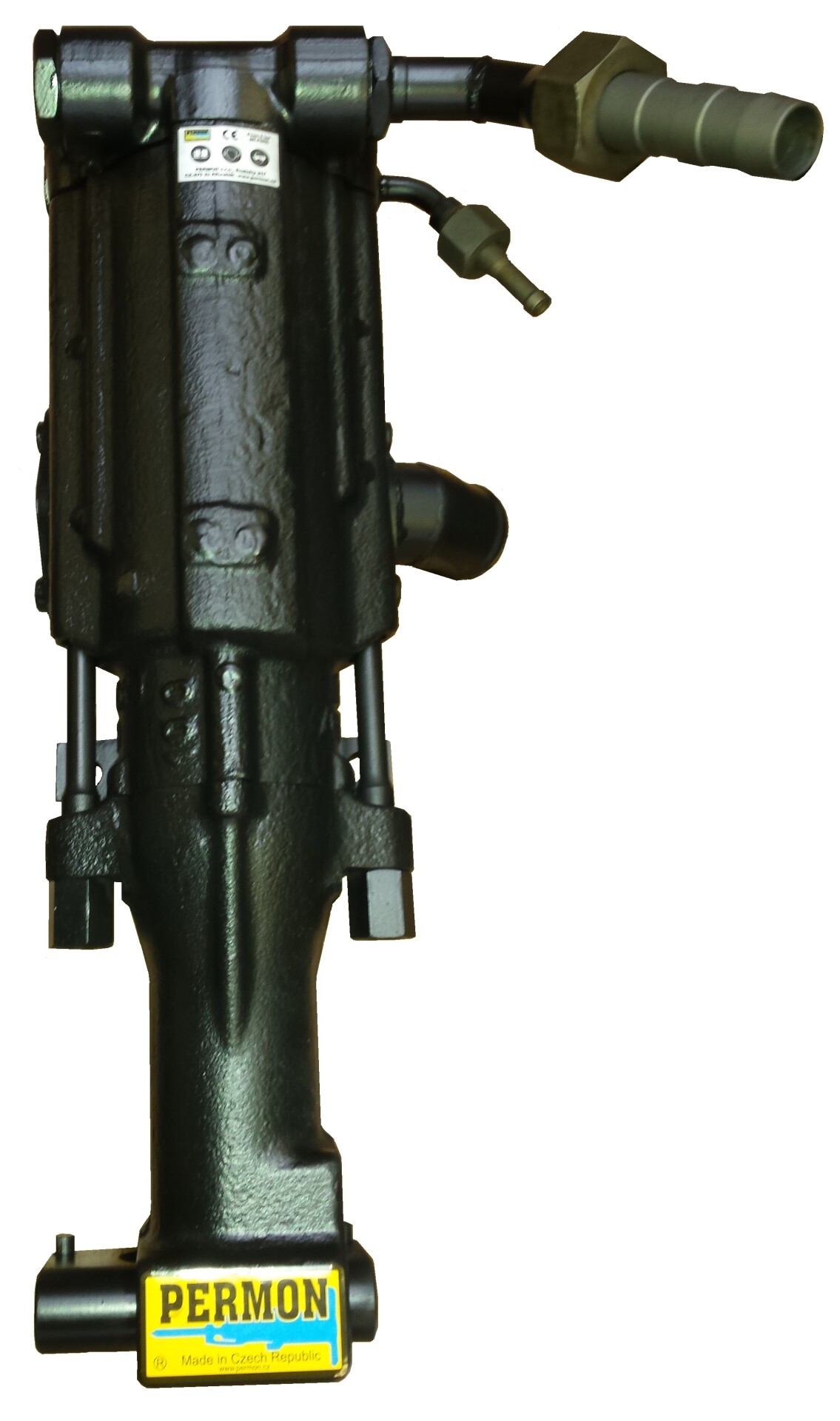

VKS 45 is a medium weight drifter rock drill. It is used for blasting operations in ore or coal mining, in stone mining and in road and railway construction works. The drifter is designed to work as part of a drilling setup including the drifter, a source of compressed air, an oiler, an operator panel and a carrier. The drifter can drill up to 10m long holes of up to Ø45 mm.
| Weight | Frequency of piston impacts | Piston diameter | Piston stroke | Torque |
|---|---|---|---|---|
| 45 kg | 44 Hz | 95 mm | 44 mm | 38 Nm |
| Rod drill rotation count | Air consumption for air+water drilling | Air consumption | Working water pressure | Flushing water consumption |
|---|---|---|---|---|
| 400 RPM | 0.5 m3min-1 | 6.4 m3min-1 | 0,2 – 0,4 MPa | 5 l min-1 |
| Oper. air pressure | Length x Width | Bore rod shank | Air supply hose | Flushing water supply hose |
|---|---|---|---|---|
| 0,4 – 0,6 MPa | 615 x 300 mm | # 22x108 | Js 32 | Js 13 |
| Air exhaust hose | Ordering code |
|---|---|
| Js 50 | 9404-101 |
